Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System

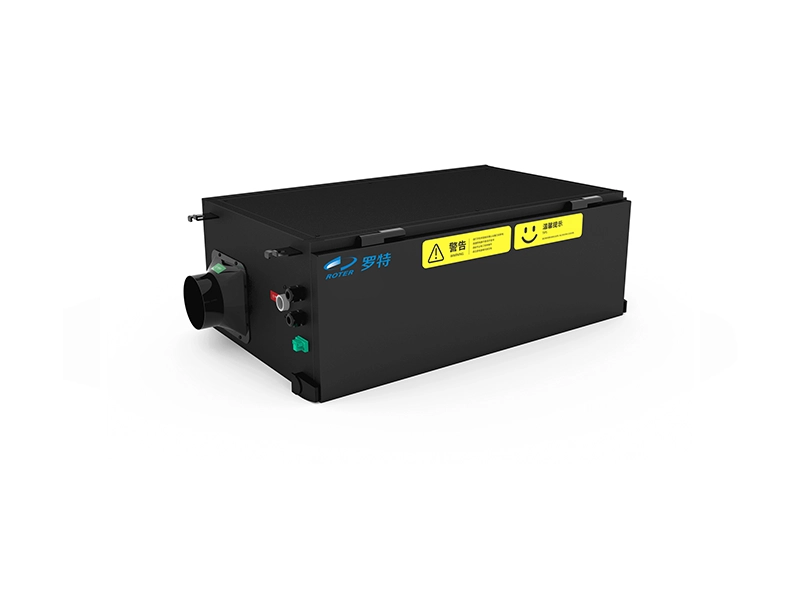

    The ROTER-LT-S series is a proprietary design of Roter. It employs a unique method to combine the direct expansion (DX) system and the purification system into an integrated fresh-air single-flow dehumidification and purification system. This model is particularly suitable for delivering dried fresh air to locations that require it, or for recirculation within designated spaces. It can also serve as a single-flow fresh-air system installed outside rooms in special environments (e.g., paint booths and areas with hazardous gases). Once the humid air is purified and dehumidified, it is supplied into the room and can likewise function as equipment for fresh-air and positive-pressure systems. Maintaining a long-term positive-pressure fresh-air environment resolves bacterial growth and dampness issues while ensuring an adequate oxygen supply.


Product Series


Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S28L
Test Condition 30°C, 80%
Dehumidification Capacity 28 L/day
Supply Airflow 280–350 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 100 Pa
Return Airflow 280–350 m³/h
Fresh Airflow 0
Operating Power 400 W
Operating Current 1.8 A
Voltage / Frequency 220 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <35 dB
Compressor Baifuma*
Refrigerant R134a
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN20
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet Φ100 mm
Supply-Air Outlet Φ100 mm
Exhaust Outlet None
Dimensions 760 × 455 × 265 mm
Net Weight 34 kg

Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S40L LT-S60L
Test Condition 30°C, 80%
Dehumidification Capacity 40 L/day 60 L/day
Supply Airflow 500–670 m³/h 650–780 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 100 Pa
Return Airflow 500–670 m³/h 650–780 m³/h
Fresh Airflow 0
Operating Power 620 W 700 W
Operating Current 2.8 A 3.3 A
Voltage / Frequency 220 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <45 dB
Compressor Baifuma*
Refrigerant R134a
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN20
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet Φ150 mm
Supply-Air Outlet Φ150 mm
Exhaust Outlet None
Dimensions 950 × 539 × 265 mm
Net Weight 45 kg 47 kg


Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S100L LT-S140L
Test Condition 30°C, 80%
Dehumidification Capacity 100 L/day 140 L/day
Supply Airflow 1,000–1,200 m³/h 1,200–1,350 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 100 Pa
Return Airflow 1,000–1,200 m³/h 1,200–1,350 m³/h
Fresh Airflow 0
Operating Power 920 W 1,160 W
Operating Current 4.3 A 5.4 A
Voltage / Frequency 220 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <45 dB
Compressor Panasonic
Refrigerant R410A
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN20
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet Φ200 mm
Supply-Air Outlet Φ200 mm
Exhaust Outlet None
Dimensions 1,030 × 639 × 375 mm
Net Weight 68 kg 71 kg

Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S180L LT-S250L
Test Condition 30°C, 80%
Dehumidification Capacity 180 L/day 250 L/day
Supply Airflow 1,800–2,200 m³/h 2,500–2,900 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 200 Pa
Return Airflow 1,800–2,200 m³/h 2,500–2,900 m³/h
Fresh Airflow 0
Operating Power 2,700 W 4,000 W
Operating Current 4.8 A 7 A
Voltage / Frequency 380 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <55 dB
Compressor Panasonic Daikin
Refrigerant R22
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN32
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet 500 × 400 mm
Supply-Air Outlet 356 × 313 mm
Exhaust Outlet None
Dimensions 1,370 × 820 × 640 mm
Net Weight 175 kg 182 kg

Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S380L LT-S500L
Test Condition 30°C, 80%
Dehumidification Capacity 380 L/day 500 L/day
Supply Airflow 3,500–3,850 m³/h 4,800–5,300 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 200 Pa
Return Airflow 3,500–3,850 m³/h 4,800–5,300 m³/h
Fresh Airflow 0
Operating Power 5,500 W 9,000 W
Operating Current 10 A 16 A
Voltage / Frequency 380 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <55 dB
Compressor Panasonic Daikin
Refrigerant R22
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN32
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet 750 × 450 mm
Supply-Air Outlet 818 × 313 mm
Exhaust Outlet None
Dimensions 1,370 × 1,120 × 720 mm
Net Weight 270 kg 300 kg

Equipment Category Fresh-Air Single-Flow Haze-Removal Dehumidification Purification System
Model LT-S750L LT-S1000L
Test Condition 30°C, 80%
Dehumidification Capacity 750 L/day 1,000 L/day
Supply Airflow 7,500–9,000 m³/h 9,000–11,000 m³/h
Fan Type 2-Speed Adjustable / Stepless Speed Control
Supply Static Pressure 400 Pa
Return Airflow 7,500–9,000 m³/h 9,000–11,000 m³/h
Fresh Airflow 0
Operating Power 15,000 W 21,000 W
Operating Current 26 A 37 A
Voltage / Frequency 380 V / 50 Hz
Control Method Full-Touch LCD
Electric Shock & Water Ingress Protection Class I / IPX3
Noise <55 dB
Compressor Daikin
Refrigerant R22
Heat Exchanger Hydrophilic Aluminum Foil & Copper Tubing
Drain Pan SUS304 Stainless Steel
Drain Pipe Diameter DN32
Filtration (Optional) Primary / Medium / High-Efficiency
Purification (Optional) UV Sterilization / Negative Ions
Fresh-Air Inlet None
Return-Air Inlet 1,200 × 450 mm
Supply-Air Outlet 1,058 × 348 mm
Exhaust Outlet None
Dimensions 1,700 × 1,642 × 720 mm
Net Weight 500 kg 560 kg
