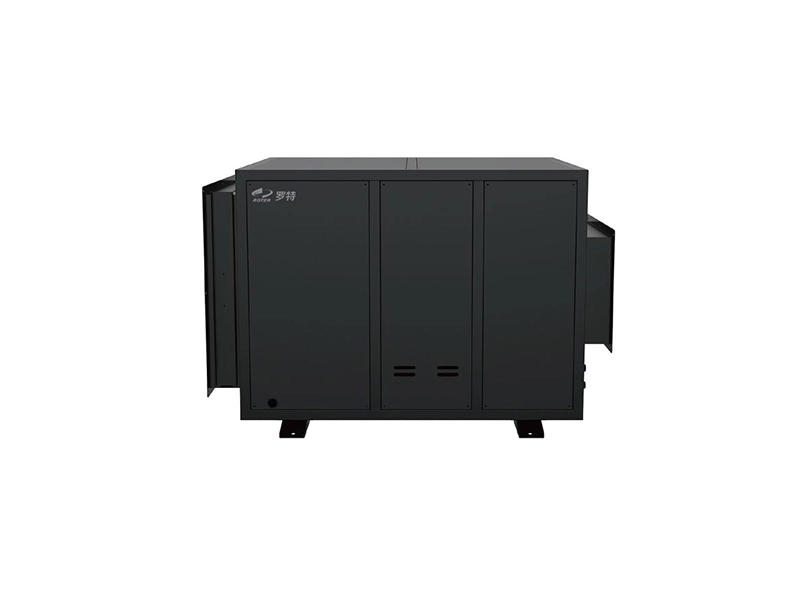

Fresh-Air Dehumidification All-in-One Unit

    • Panasonic-Brand Compressor, Grade-1 Energy Efficiency:
    While delivering high-efficiency dehumidification, it achieves energy savings and environmental protection, with strong cooling capacity. Its truly ultra-quiet direct-coupled (direct-drive) transmission ensures compressor working efficiency of over 98%.
    • Forward-Curved Centrifugal Fan: High Airflow, Low Noise:
    The unit uses a forward-curved centrifugal fan, which delivers low noise and high air volume while offering a longer service life.


Fresh-Air Dehumidification All-in-One Unit Product Features

1. Automatic defrost for efficient dehumidification:
With an exclusive defrost mode and a nationally patented defrost device, the system automatically determines whether the evaporator is frosted at low temperatures; when frosting occurs, the control system activates the automatic defrost function, improving dehumidification efficiency.
2. Sheet-metal cabinet for rugged durability:
The entire unit adopts a sheet-metal frame structure that is rugged, durable, and resistant to deformation, with excellent corrosion and oxidation resistance for an ultra-long service life.
3. Smart display for simpler operation:
The intelligent LCD display accurately shows the dehumidification status; all information is clear at a glance, and virtual function buttons make operation simpler.
4. Thickened hydrophilic coils with larger contact area:
The thickened hydrophilic coils (evaporator and condenser) provide a larger refrigerant contact area; compared with ordinary dehumidifiers, they form a larger water-condensation area, delivering higher dehumidification efficiency.
5. No need to open windows — enjoy oxygen-enriched fresh air:
Fresh air is introduced through duct design to replace the stale indoor air, lowering indoor carbon dioxide concentration while increasing the indoor oxygen content, so you can enjoy oxygen-enriched fresh air without opening windows.

Specifications and Parameters

Model Power Supply Dehumidification Capacity Test Condition Total Airflow Fresh Airflow External Static Pressure Maximum Power Maximum Current Noise dB Return Air Port Fresh Air Port Supply Air Port Unit Dimensions Applicable Temperature
LTXF-168A 380V/50Hz 168L/D 30℃ RH80% 2200m³/h 360m³/h 150Pa 2500W 3.8A 60dB(A) 400X550mm 350X150mm 540X430mm 1050X700X700mm 5-38℃
LTXF-240A 380V/50Hz 240L/D 30℃ RH80% 2580m³/h 420m³/h 150Pa 4000w 6.2A 60dB(A) 400X550mm 350X150mm 604X554mm 1100X900X700mm 5-38℃
LTXF-360A 380V/50Hz 360L/D 30℃ RH80% 4300m³/h 700m³/h 180Pa 7500W 11.6A 75dB(A) 650X500mm 350X250mm 1004X524mm 1280X1100X700mm 5-38℃
LTXF-480A 380V/50Hz 480L/D 30℃ RH80% 5300m³/h 880m³/h 180Pa 8700W 13.5A 75dB(A) 650×500mm 350X250mm 1004X524mm 1280×1100x700mm 5-38℃
