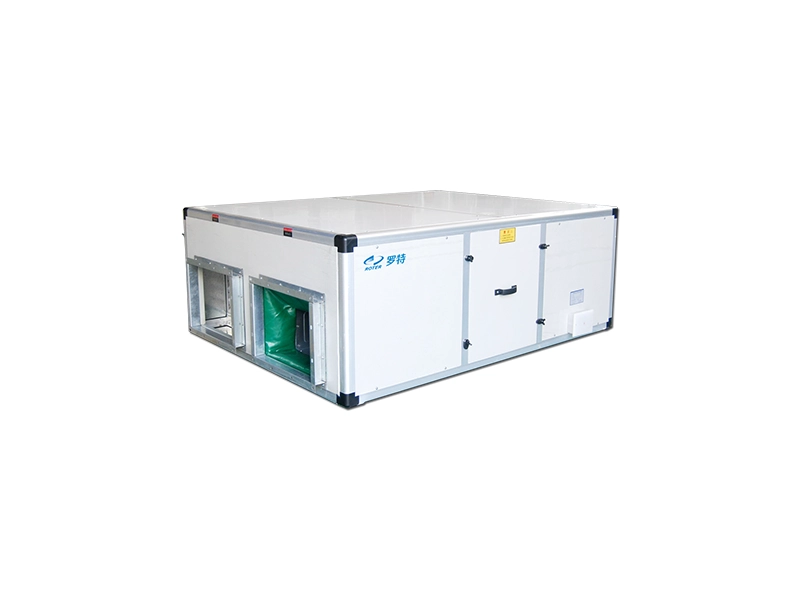

Medium Ceiling-Mounted Total Heat Recovery Unit

● Airflow range: 1,000–15,000 m³/h, suitable for hotels, guest rooms, small meeting rooms, residential dwellings, and similar applications.
● The machine is placed in the ceiling, which does not occupy the effective indoor space and does not affect the indoor decoration effect;
● The cross-counter-flow plate heat exchanger raises energy-recovery efficiency, lowers air resistance, and makes the energy-saving effect even more pronounced.

+86 18800560886 +86 17768519872

Medium Ceiling-Mounted Total Heat Recovery Unit Performance Table

Unit Model	Rated Airflow (m³/h)	External Static Pressure (Pa)	Voltage	Motor Power (kw)	Temp. Recovery Efficiency (%)	Unit Noise dB(A)	Unit Weight(Kg)
Unit Model	Rated Airflow (m³/h)	External Static Pressure (Pa)	Voltage	Motor Power (kw)	Temp. Recovery Efficiency (%)	Unit Noise dB(A)	Total Heat
CXH-10DA	1000	120	380V 50HZ	0.22*2	72	61	140
CXH-15DA	1500	130	380V 50HZ	0.32*2	68	57	150
CXH-20DA	2000	180	380V 50HZ	0.37*2	68	67	180
CXH-25DA	2500	200	380V 50HZ	0.55*2	68	59	210
CXH-30DA	3000	240	380V 50HZ	0.65*2	72	60	280
CXH-40DA	4000	260	380V 50HZ	0.9*2	70	63	330
CXH-50DA	5000	270	380V 50HZ	1.37*2	70	63	350
CXH-60DA	6000	290	380V 50HZ	1.8*2	72	69	440
CXH-70DA	7000	270	380V 50HZ	2.2*2	71	72	520
CXH-80DA	8000	330	380V 50HZ	2.8*2	72	71	570
CXH-90DA	9000	330	380V 50HZ	3.0*2	70	71	570
CXH-100DA	10000	400	380V 50HZ	3.5*2	71	72	670
CXH-120DA	12000	400	380V 50HZ	4.5*2	70	75	780
CXH-150DA	15000	400	380V 50HZ	5.5*2	70	75	780
Notes: (1) Fresh airflow = exhaust airflow = rated airflow. (2) The enthalpy recovery efficiency is based on the following operating conditions: Summer — outdoor dry-bulb temperature 33°C, RH 80%, indoor dry-bulb temperature 26°C, RH 50%; Winter — outdoor dry-bulb temperature 0°C, RH 30%, indoor dry-bulb temperature 20°C, RH 60%. If the operating conditions change, the actual efficiency may fall outside the stated enthalpy recovery efficiency range. (3) This is for reference only.
