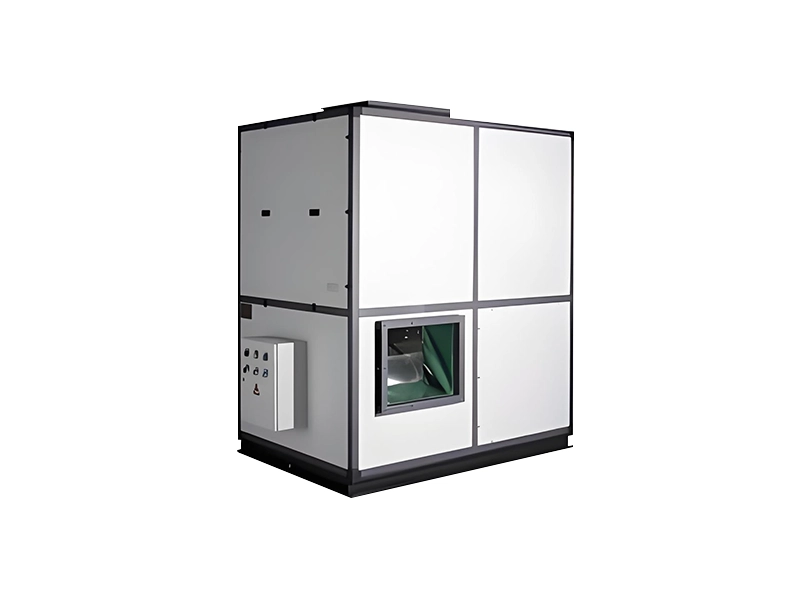

Vertical Total Heat Recovery Unit

● Suitable for underground garages, large supermarkets, swimming pools, shopping malls, office buildings, restaurants, and similar places.
● The unit adopts floor-standing installation; it can be placed in an equipment room or outdoors, with low noise in the ventilation area.
● Airflow range: 1,500–20,000 m³/h.
● It can simultaneously achieve balanced (two-way) air exchange, air purification, energy recovery, and other functions.
● The electrical control box can be attached to the unit or separated from it for remote control, with flexible placement.

+86 18800560886 +86 17768519872

Vertical Total Heat Recovery Unit Performance Table

Unit Model	Rated Airflow (m³/h)	External Static Pressure (Pa)	Voltage	Motor Power (kw)	Temp. Recovery Efficiency %	Unit Noise dB(A)	Unit Weight (Kg)
Unit Model	Rated Airflow (m³/h)	External Static Pressure (Pa)	Voltage	Motor Power (kw)	Temp. Recovery Efficiency %	Unit Noise dB(A)	Sensible Heat	Total Heat
CHX-15L	1500	158	380V 50HZ	0.25*2	75	58	133	131
CHX-20L	2000	175	380V 50HZ	0.32*2	76	58	150	148
CHX-25L	2500	200	380V 50HZ	0.32*2	75	58	170	168
CHX-30L	3000	210	380V 50HZ	0.45*2	75	62	175	172
CHX-40L	4000	260	380V 50HZ	0.75*2	73	62	236	235
CHX-50L	5000	280	380V 50HZ	1.1*2	75	62	270	268
CHX-60L	6000	300	380V 50HZ	1.5*2	76	62	350	348
CHX-70L	7000	280	380V 50HZ	1.8*2	75	65	420	419
CHX-80L	8000	290	380V 50HZ	2.2*2	76	65	490	488
CHX-90L	9000	300	380V 50HZ	3*2	76	65	500	498
CHX-100L	10000	340	380V 50HZ	3*2	76	70	650	647
CHX-120L	12000	400	380V 50HZ	3*2	76	70	690	689
CHX-150L	15000	460	380V 50HZ	5.5*2	76	70	780	778
Note: This is for reference only.
